Product Advantages
产品优势
高强度耐用
High Strength & Durable
原料采购对比多家钢厂钢带，甄选钢材屈服强度、镀锌层均匀度、锌层附着力达标原材料。原厂质保资料齐全，源头把控品质。
We compare steel strips from multiple suppliers before purchasing. Strict selection on yield strength, uniform zinc coating and adhesion. Complete material quality documents, quality control from source.
精密制造工艺
Precision Manufacturing
全自动成型设备生产，严控每一道工序，尺寸精度高，安装便捷、拼接紧密。
Produced by automatic forming machines. Every production process is strictly controlled. High dimensional accuracy, easy installation & tight splicing.
品质稳定可靠
Reliable Quality
产品严格出厂质检，镀锌层均匀稳定，可适配海外各类工程项目施工要求。
Each product passes strict factory inspection. Uniform hot‑dip galvanized layer, suitable for various overseas construction projects.
支持规格定制
Customized Specifications
按需提供基板材质、镀锌层厚度、尺寸定制服务，适配各类建筑施工方案。
Custom options for base material, zinc coating thickness and dimensions to match different construction plans.
Product Showcase
产品展示

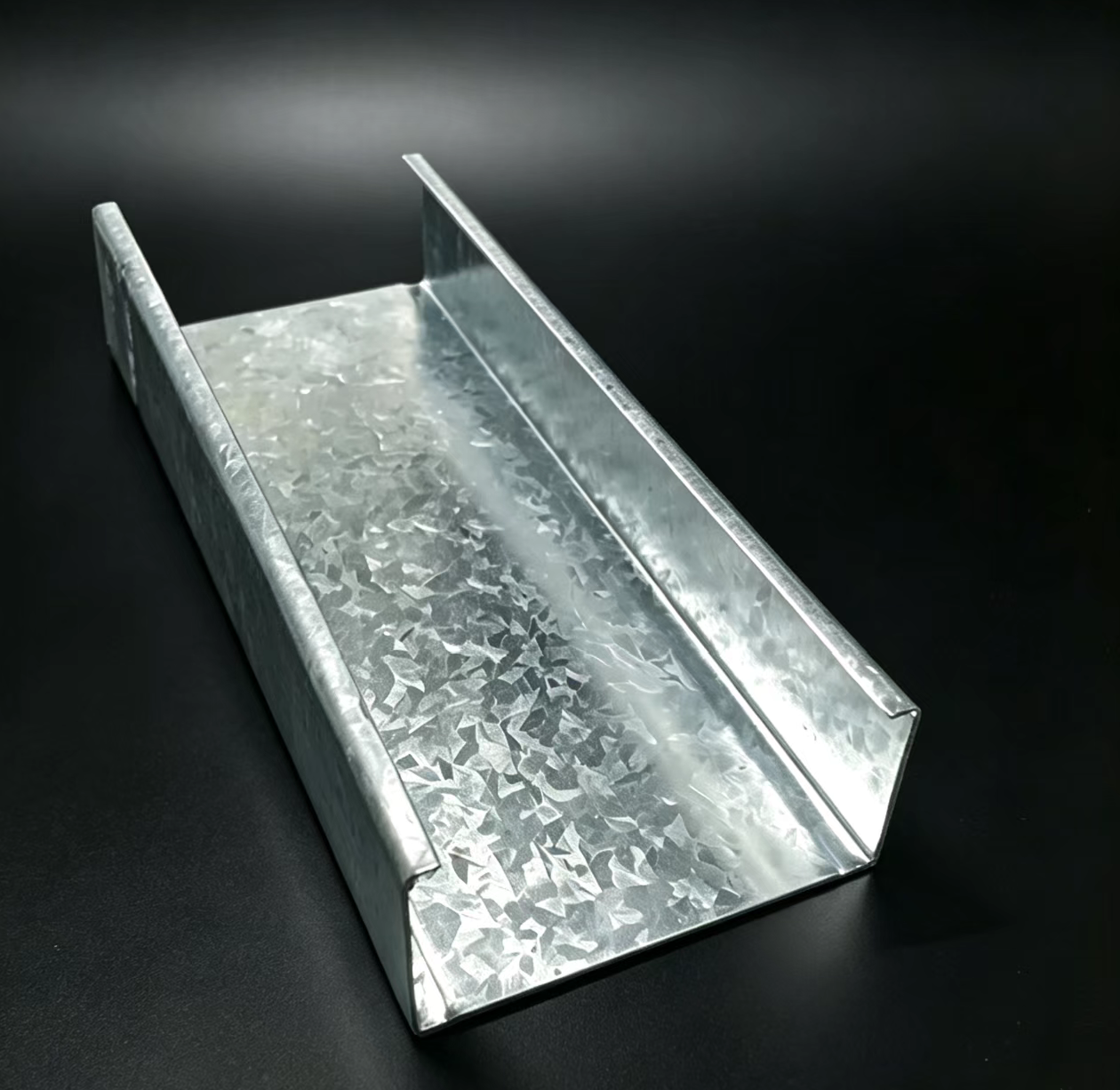

C型竖龙骨
C-Stud Keel

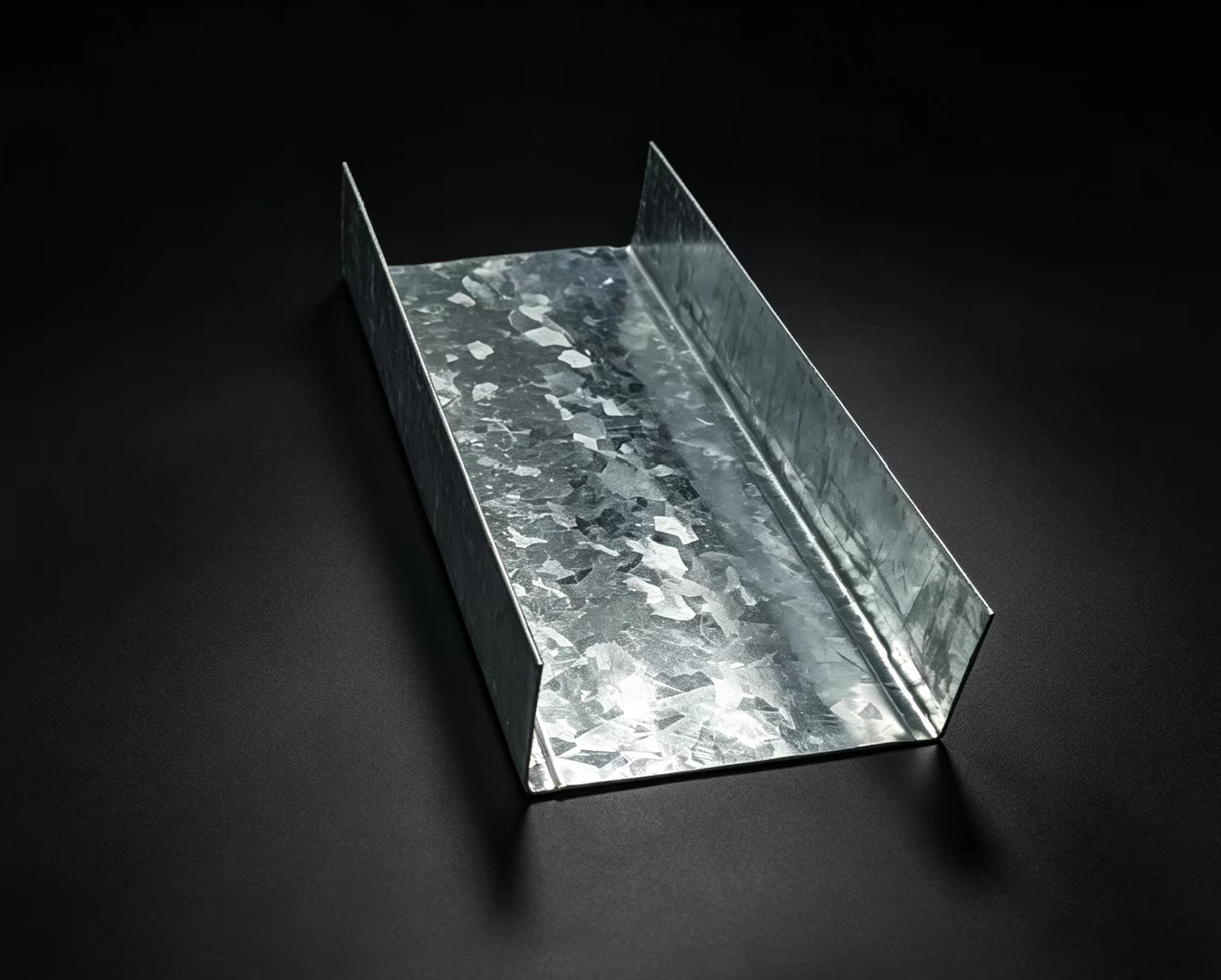

U型天地龙骨
U-Track Keel

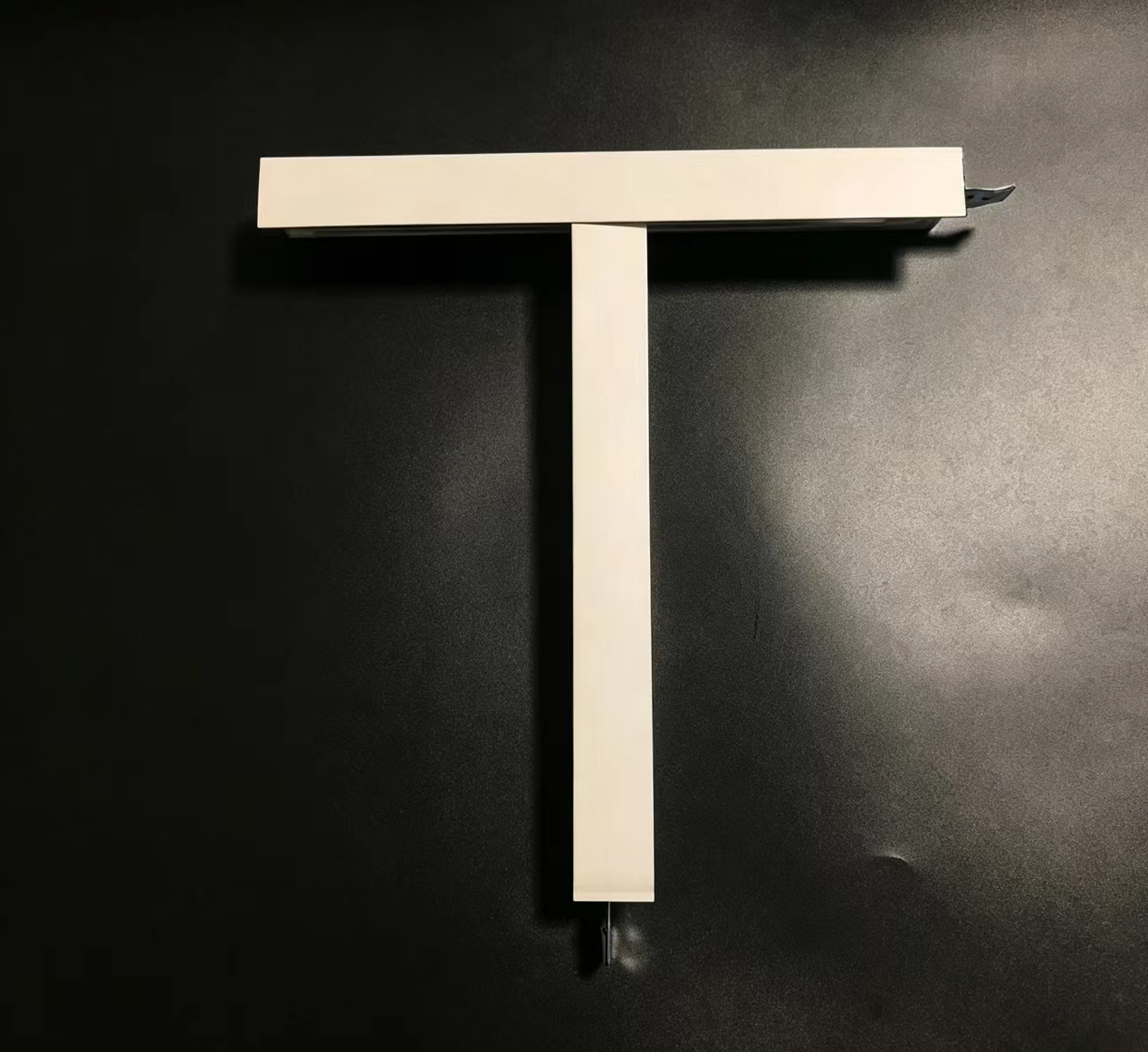

T型吊顶龙骨
T-Ceiling Keel

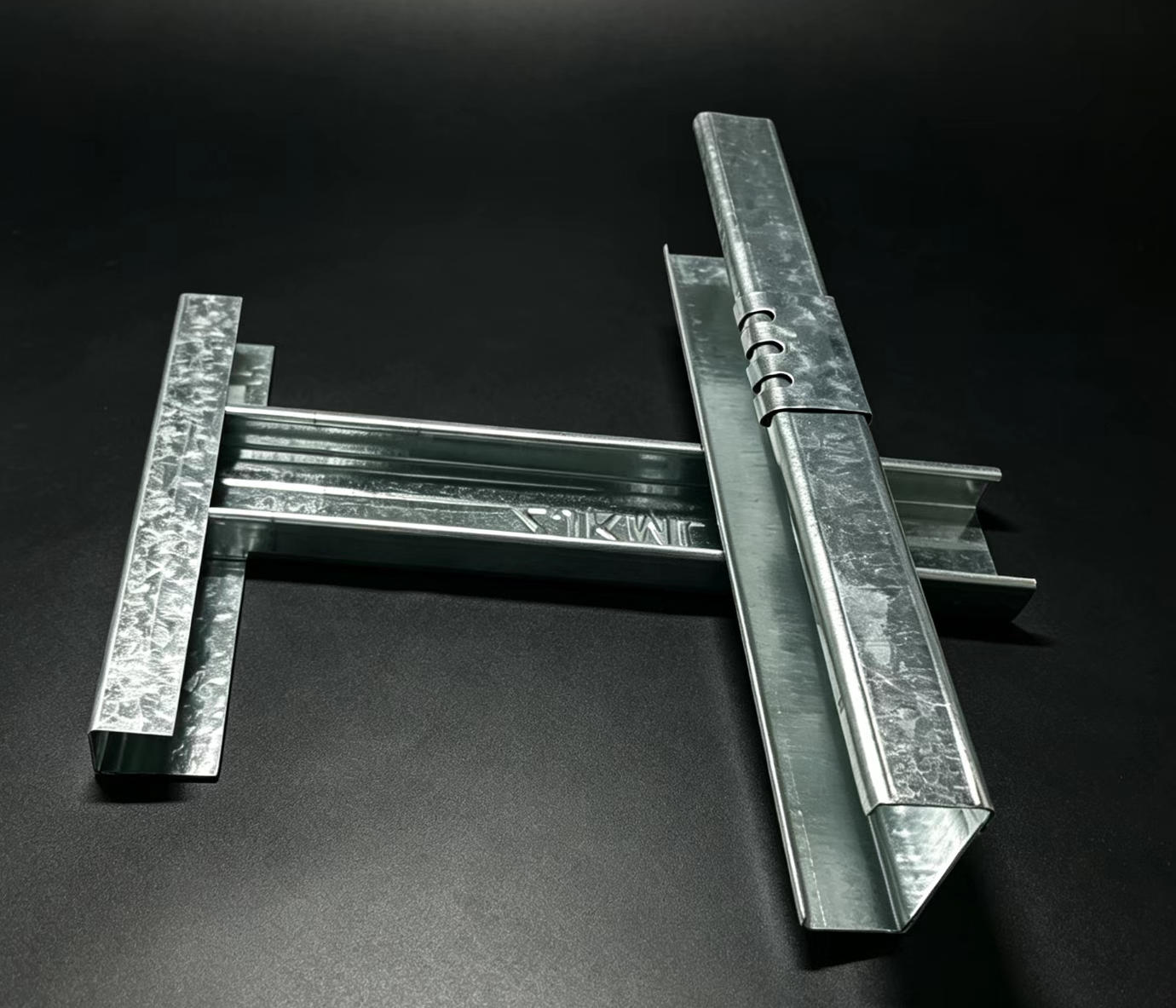

吊顶龙骨
Ceiling Keel

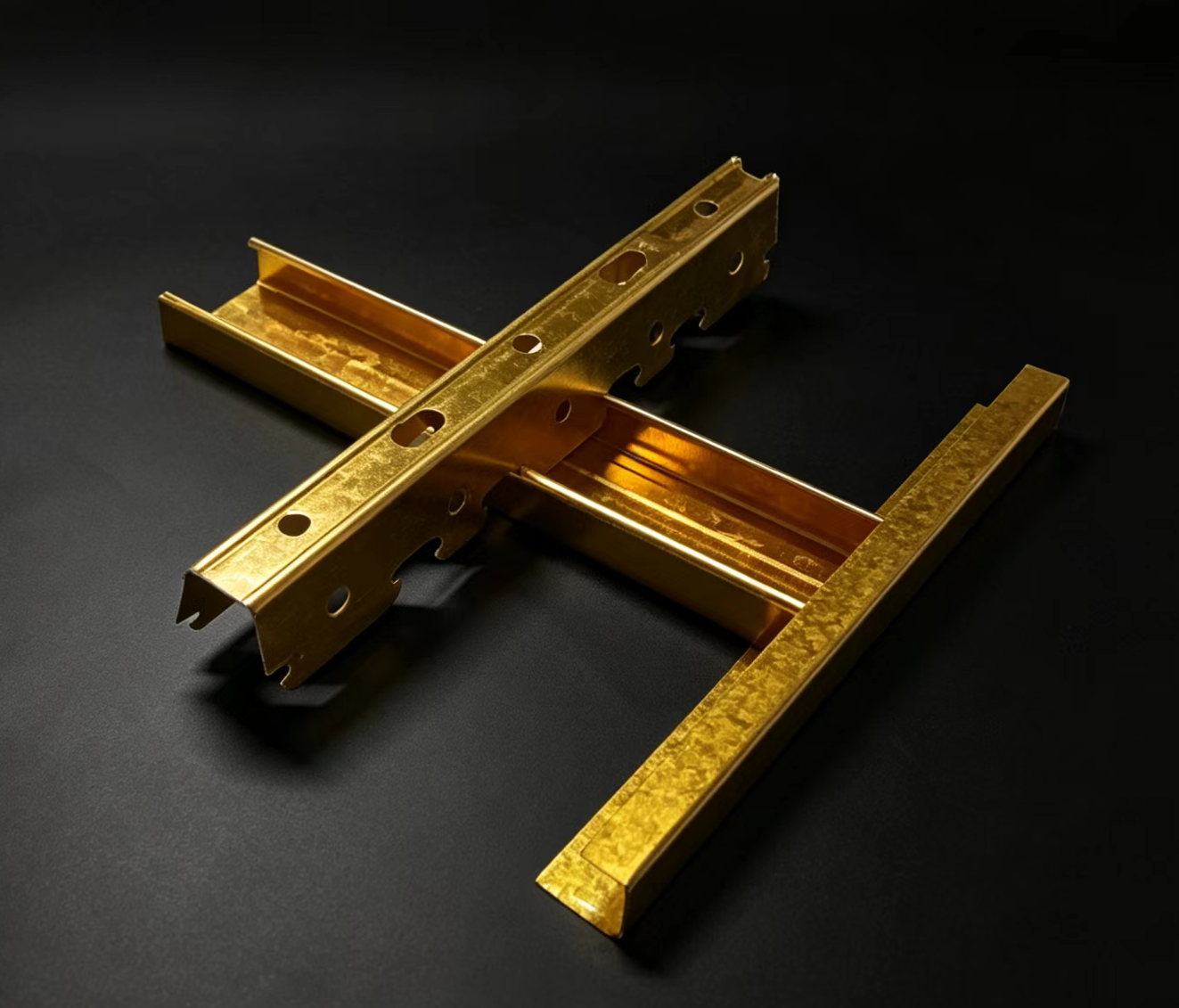

彩涂龙骨
Color Coated Keel

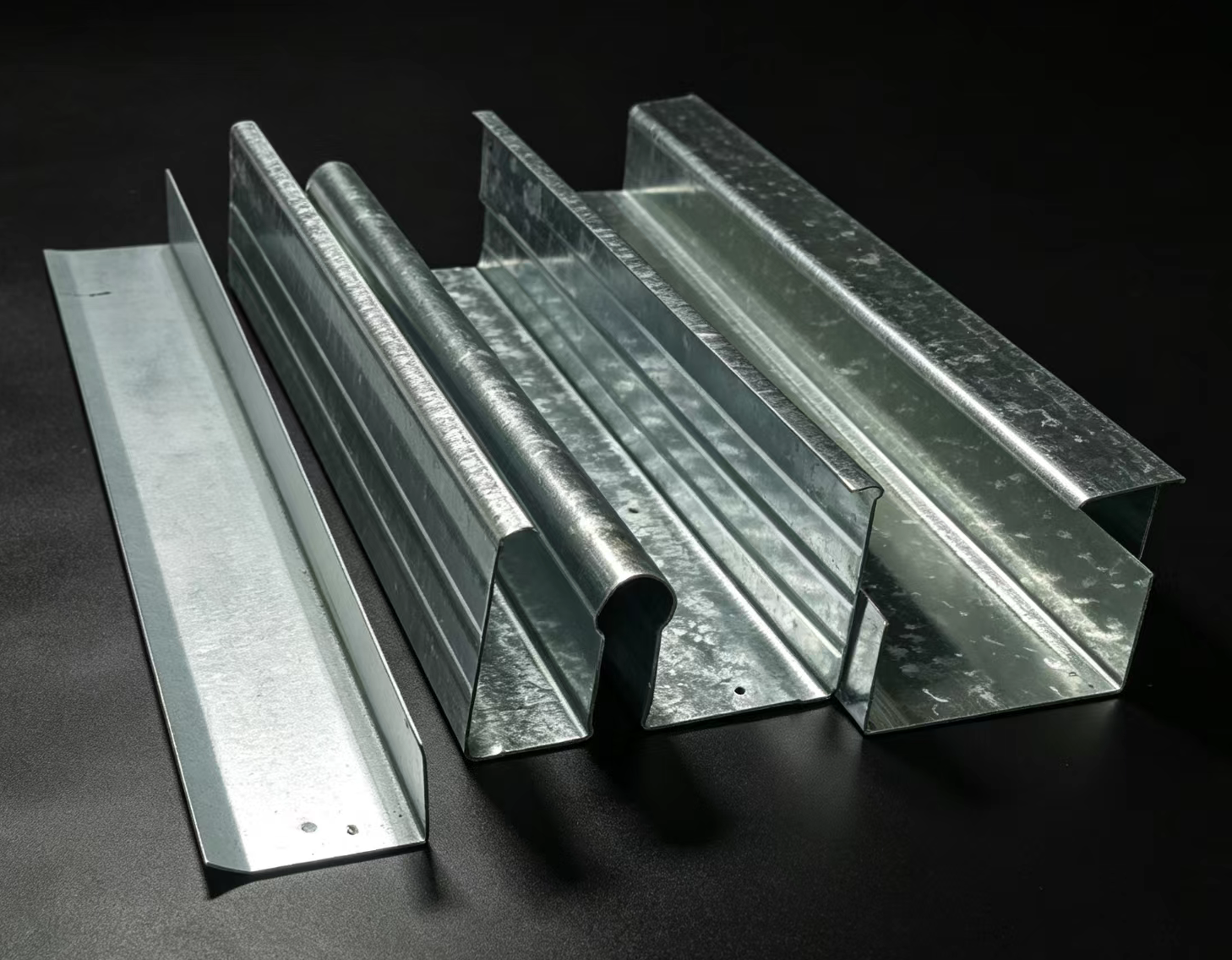

异型龙骨
Special-shaped Keel
Technical Specifications
技术参数
| 基板材质Base Material | Q195 / Q235 热镀锌钢带Q195 / Q235 Hot-dip Galvanized Steel Strip |
| 镀锌层可选Galvanizing Options | Z30、Z40、Z60、Z80、Z100、Z120Z30、Z40、Z60、Z80、Z100、Z120 |
| 主龙骨厚度Main Keel Thickness | 0.5mm、0.6mm、0.7mm、0.8mm、0.9mm、10mm、1.1mm、1.2mm0.5mm、0.6mm、0.7mm、0.8mm、0.9mm、10mm、1.1mm、1.2mm |
| 副龙骨厚度Sub Keel Thickness | 0.38mm、0.43mm、0.5mm、0.6mm、0.7mm0.38mm、0.43mm、0.5mm、0.6mm、0.7mm |
| 边龙骨厚度Edge Keel Thickness | 0.38mm、0.43mm、0.5mm0.38mm、0.43mm、0.5mm |
| 表面处理Surface Treatment | 热镀锌，防锈耐腐蚀Hot-dip Galvanized, Rust & Corrosion Resistant |
| 配套配件Accessories | 丝杆、膨胀螺栓、主吊、副龙骨吊件Threaded Rod, Expansion Bolt, Main Hanger, Sub Keel Clip |
| 适用板材Compatible Board | 石膏板Gypsum Board |
备注 / Note
主龙骨为主要承重构件；0.5mm副龙骨建议搭配≥0.6mm主龙骨；1.2mm重型主龙骨推荐搭配0.7mm副龙骨。承载力与龙骨规格、吊杆间距、施工工艺相关，大型工程请做荷载验算。
Main keel is the primary load-bearing member; 0.5mm sub keel is recommended with ≥0.6mm main keel; 1.2mm heavy-duty main keel is recommended with 0.7mm sub keel. Load capacity depends on keel specs, hanger spacing, and construction method. Please perform load calculations for large projects.
以上为常规规格，支持非标定制，欢迎咨询Standard specs shown; custom sizes available upon request
Application Scenarios
应用场景
商业写字楼
Commercial Office Building
商业写字楼
Commercial Office Building
酒店装修
Hotel Renovation
酒店装修
Hotel Renovation
医院与学校
Hospital & School
医院与学校
Hospital & School
工业厂房
Industrial Factory
工业厂房
Industrial Factory
Factory Strength
工厂实力
文安县睿阳金属制品有限公司 & 文安县鑫西达装饰材料厂，双生产主体运营，拥有现代生产车间与全自动轻钢龙骨成型设备，可稳定承接各类订单。
Wen'an Ruiyang Metal Products Co., Ltd. & Wen'an Xinxida Decoration Material Factory operate as dual production entities. We have modern workshops and automatic light steel keel forming equipment to stably accept various orders.

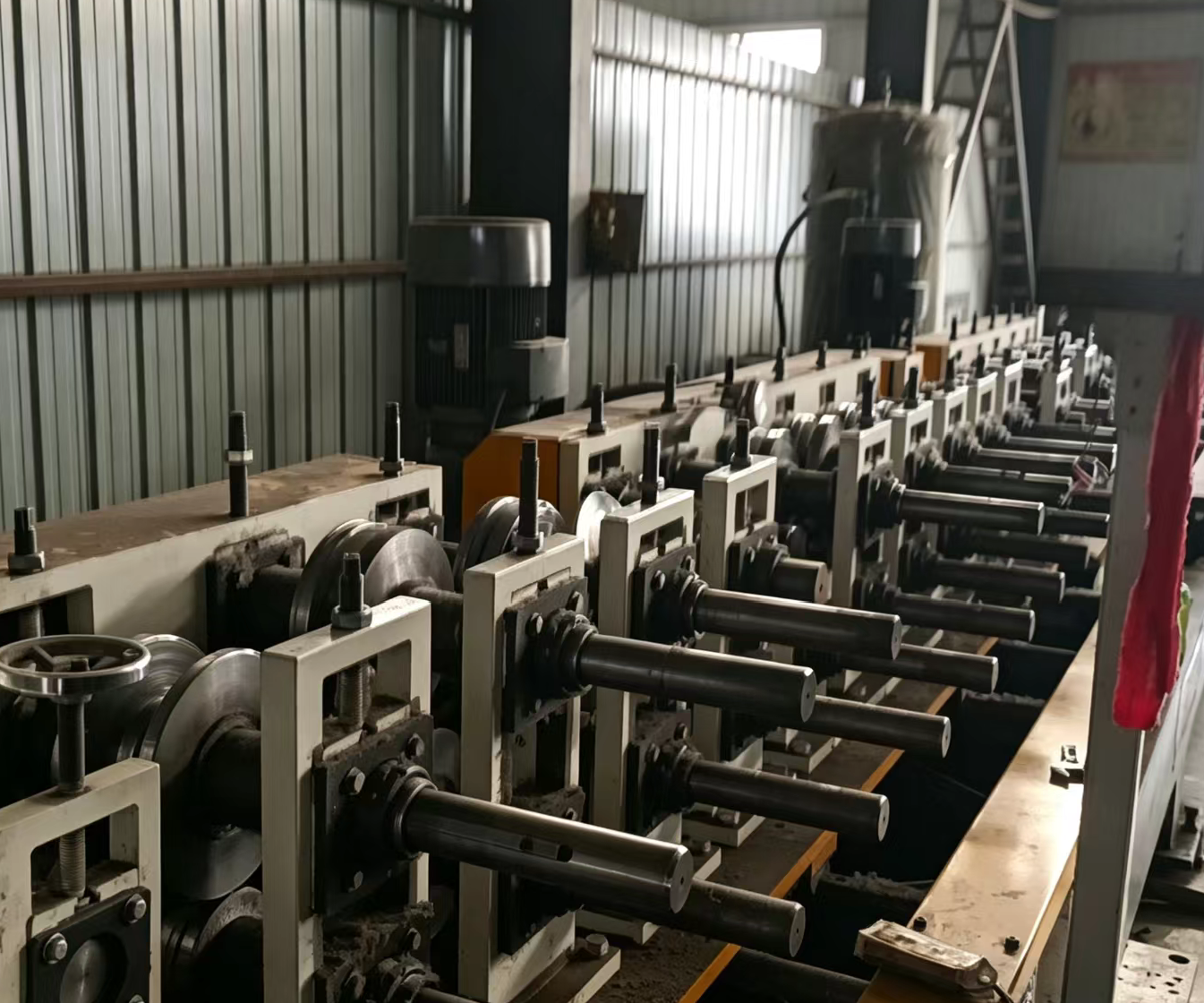

现代化生产基地
Modern Production Base
拥有现代生产车间与全自动轻钢龙骨成型设备，双生产主体灵活运营。
Modern workshops and automatic forming equipment support flexible production.

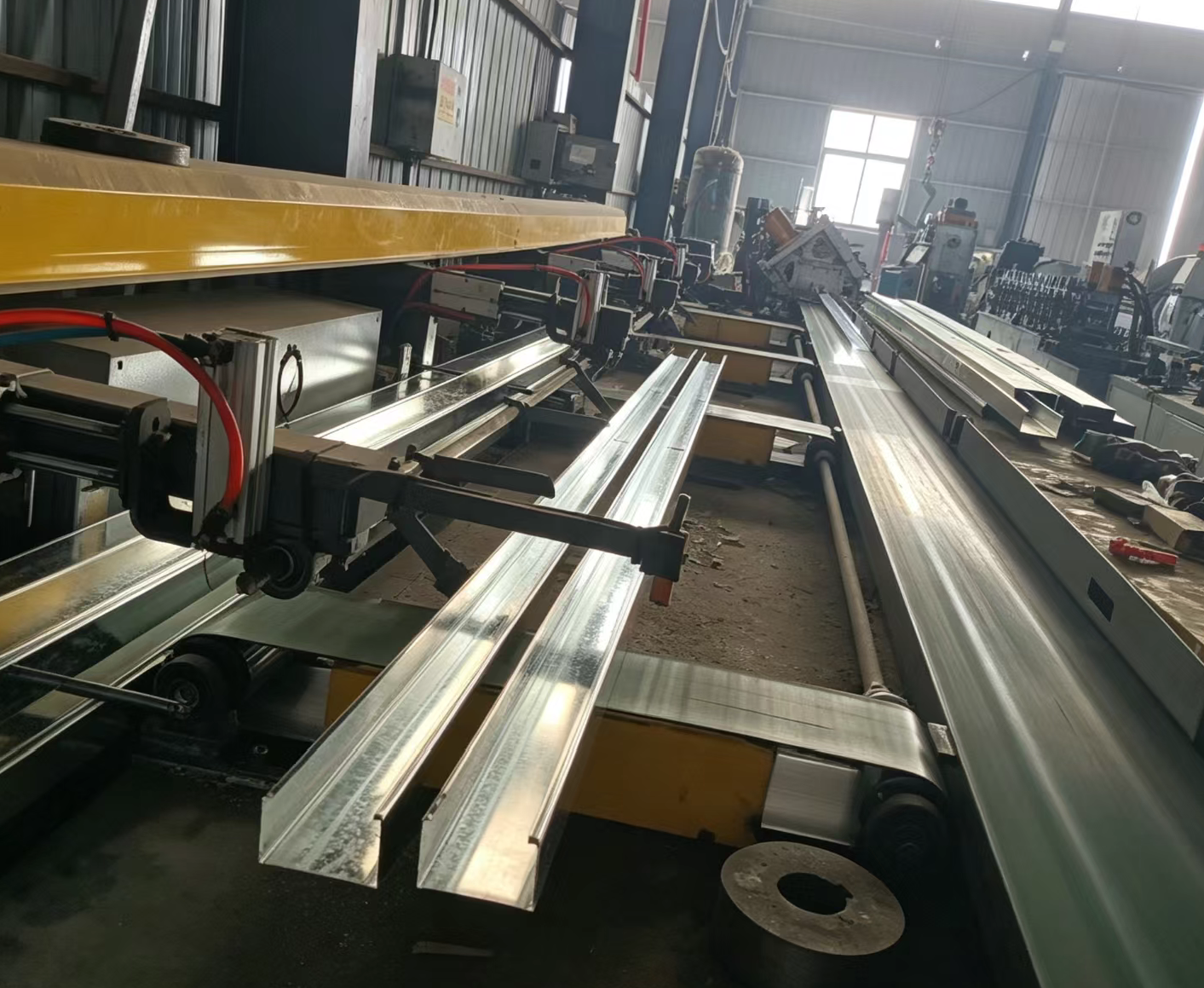

全自动成型设备
Automatic Forming Equipment
从钢带进料到成品连续成型，生产效率高，尺寸稳定。
Steel strip is continuously formed into finished keels with high efficiency and stable size.

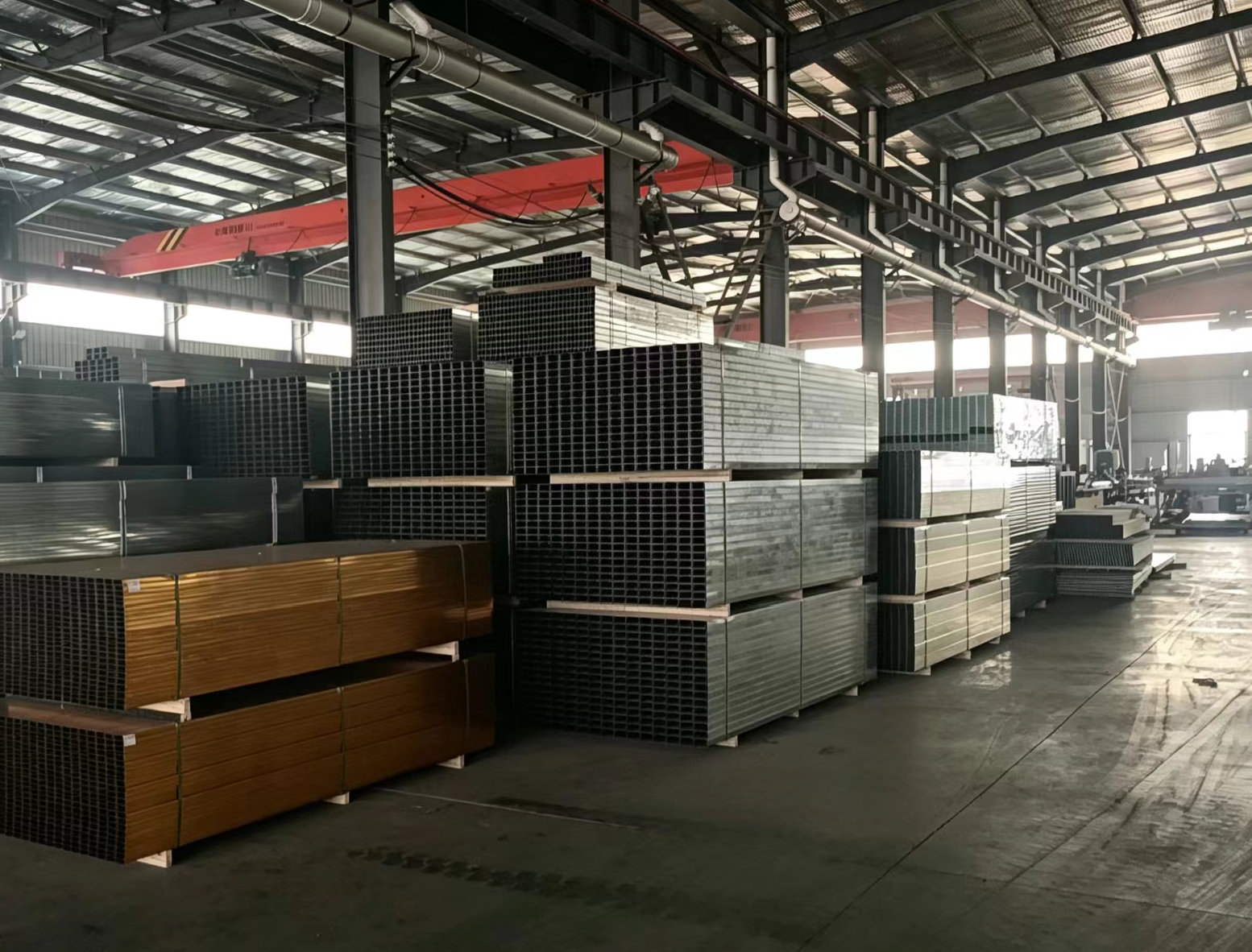

全流程质量管控
Full-Process Quality Control
原材料检验、生产控制、成品检测层层把关，稳定产品质量。
Raw material inspection, process control and finished testing ensure stable quality.

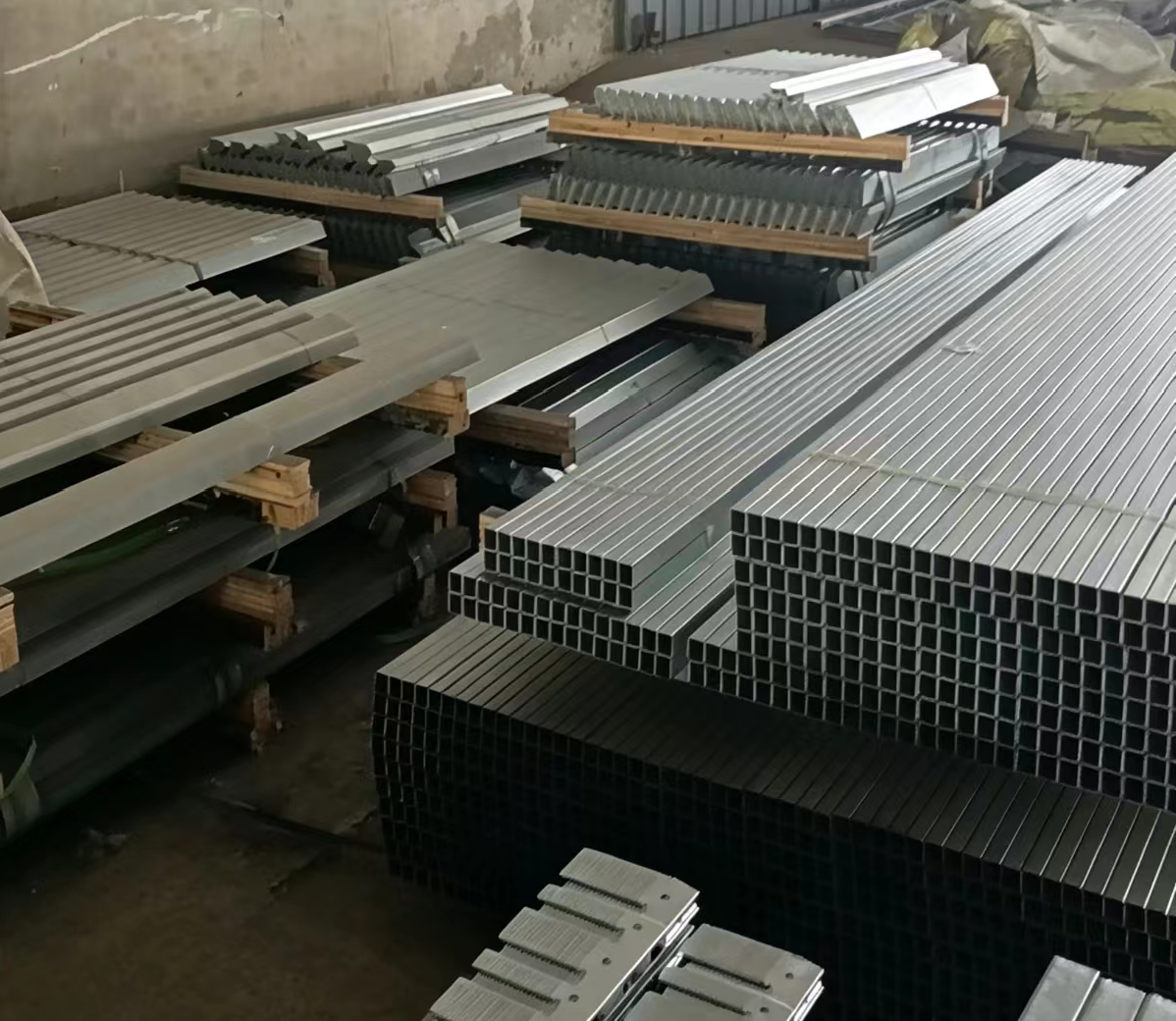

多规格定制能力
Multi-Specification Customization
支持厚度、镀锌层、截面尺寸及异型龙骨定制。
Custom thickness, zinc coating, cross-section and special-shaped keels are available.
